Fusion Absolute

Explore in 3D
99/100
2,246 Citations

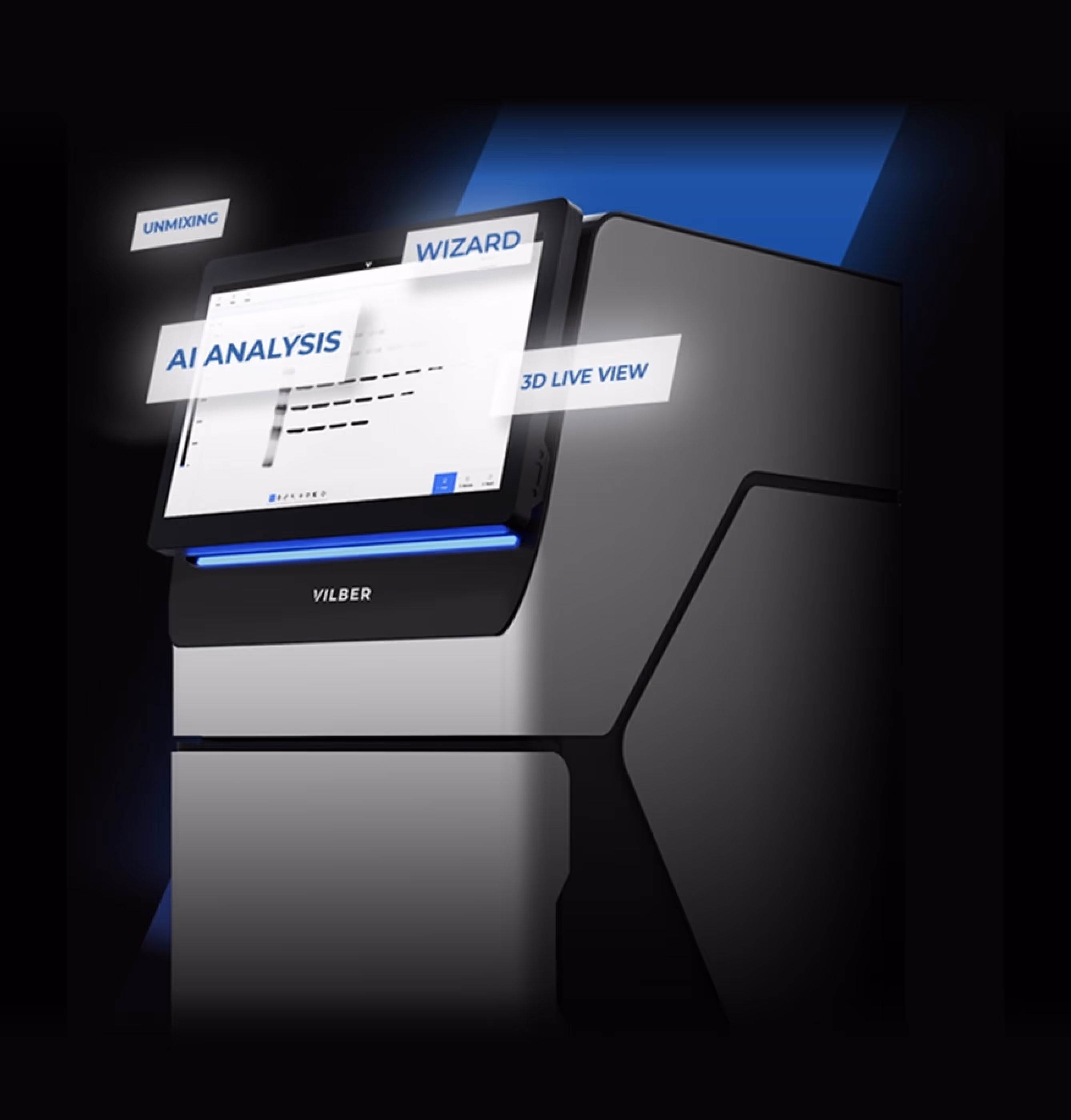

Modern Vilber device with touchscreen displaying a graphical analysis chart against dark background.VILBER analytical device with screen showing AI analysis, wizard, unmixing, and 3D live view features.Blue text on white background: AI ANALYSIS, UNMIXING, EDIT MODE, 3D LIVE VIEW, WIZARD.
Futuristic light projection above a flat surface with glowing particles falling in dark space.

Calibrated Photon Counting Optics

The Fusion Absolute is the first ultra-precise photon-counting imaging system that delivers effortless absolute quantification through NIST-Traceable Calibration*. By measuring light irradiance in photons/s/pixel and referencing certified standards, it ensures unmatched accuracy, reproducibility, and cross-condition comparability. Unlike relative methods that only report fold-changes between samples (the ratio of signal intensities, e.g. a “2×” difference), absolute quantification provides you with precise, reliable values in absolute units, transforming your workflows with standardized protocols and directly comparable data.

Relative Quantification
Absolute Quantification
Flowchart showing two signals of 10,000 and 40,000 with arrows indicating their paths and direction.
*Absolute NIST Traceable Calibration Imaging is based on traceable references provided by the National Institute of Standards and Technology (NIST).
Learn more
ACCURACY
—
REPRODUCIBILITY
—
COMPARABILITY
—
ACCURACY
—
REPRODUCIBILITY
—
COMPARABILITY
—

Exceptional performance

We’re proud that our Fusion range, trusted by several Nobel Prize winners and prestigious institutes worldwide, owes its reputation to the high-quality of its state-of-the-art optics. Designed to accelerate your most advanced research, our new Fusion Absolute is equipped with a f/0.70 aperture lens (the smaller the f-number, the better) and with a deeply cooled CCD scientific camera so that you get the best possible images without any background noise. Its wide linear dynamic range also allows you to capture both strong and weak signals, ensuring accurate quantification of low-concentration proteins.

Widest f/0.70 aperture
Absolute cooling up to -65°C
16-bit CCD scientific camera
65,535 grey levels detection

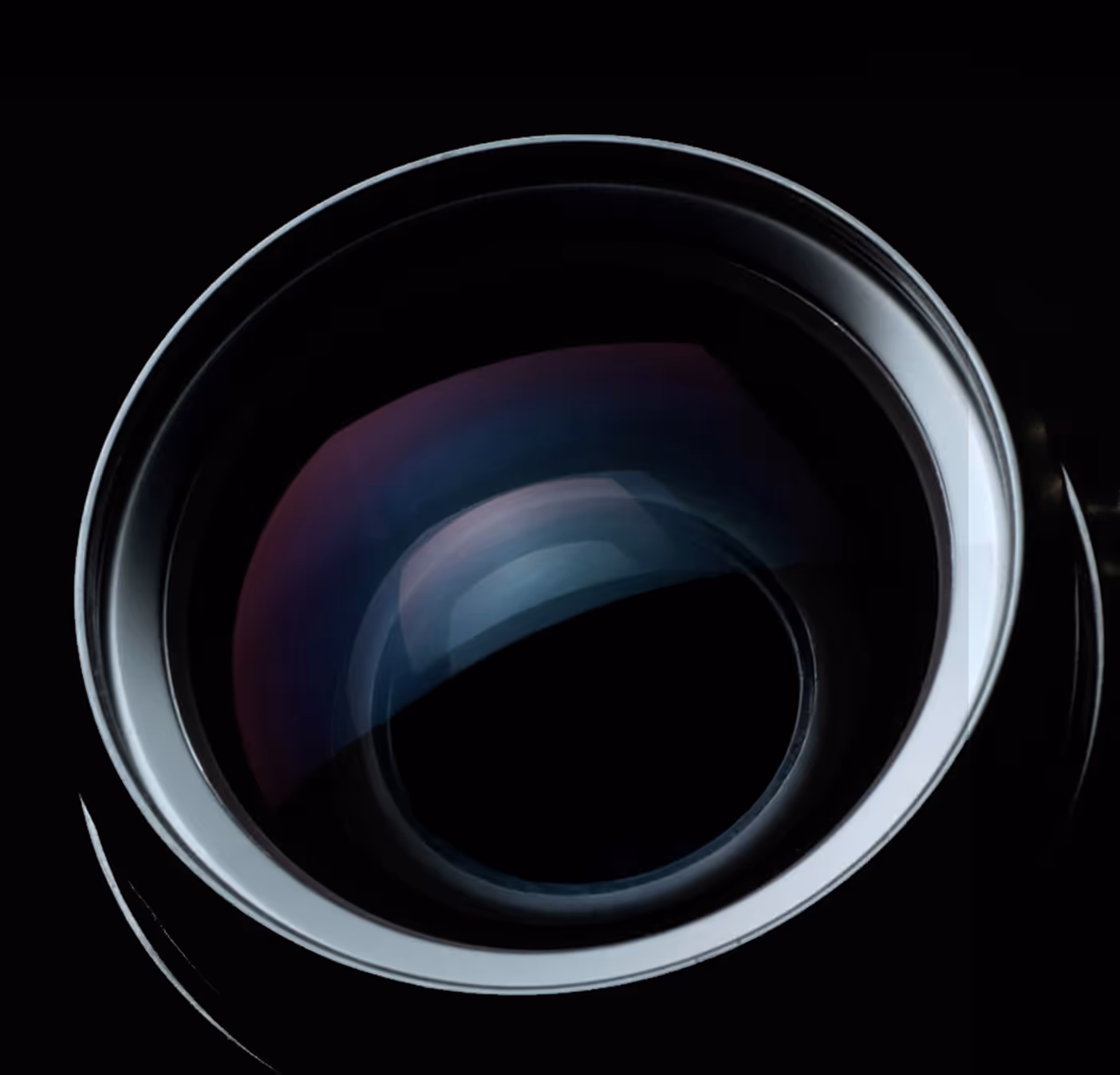

Close-up of a camera lens with reflective glass surface on a black background.
365 nm
UV
440 nm
Blue
480 nm
Blue
540 nm
Green
580 nm
Orange
640 nm
Red
680 nm
NIR
740 nm
IR
780 nm
IR

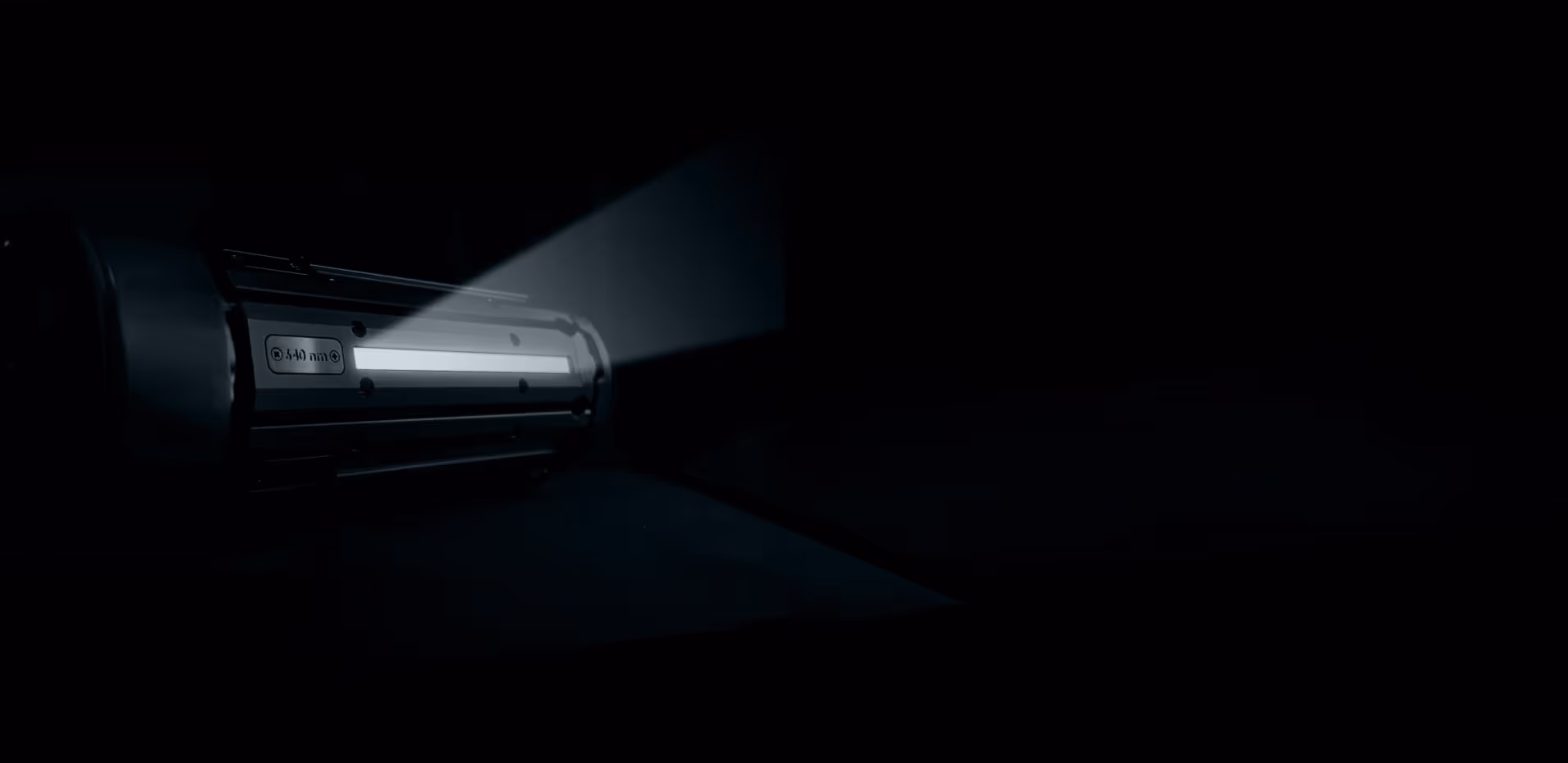

A UV light emitting device labeled 365 nm casting a beam in a dark environment.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Learn more

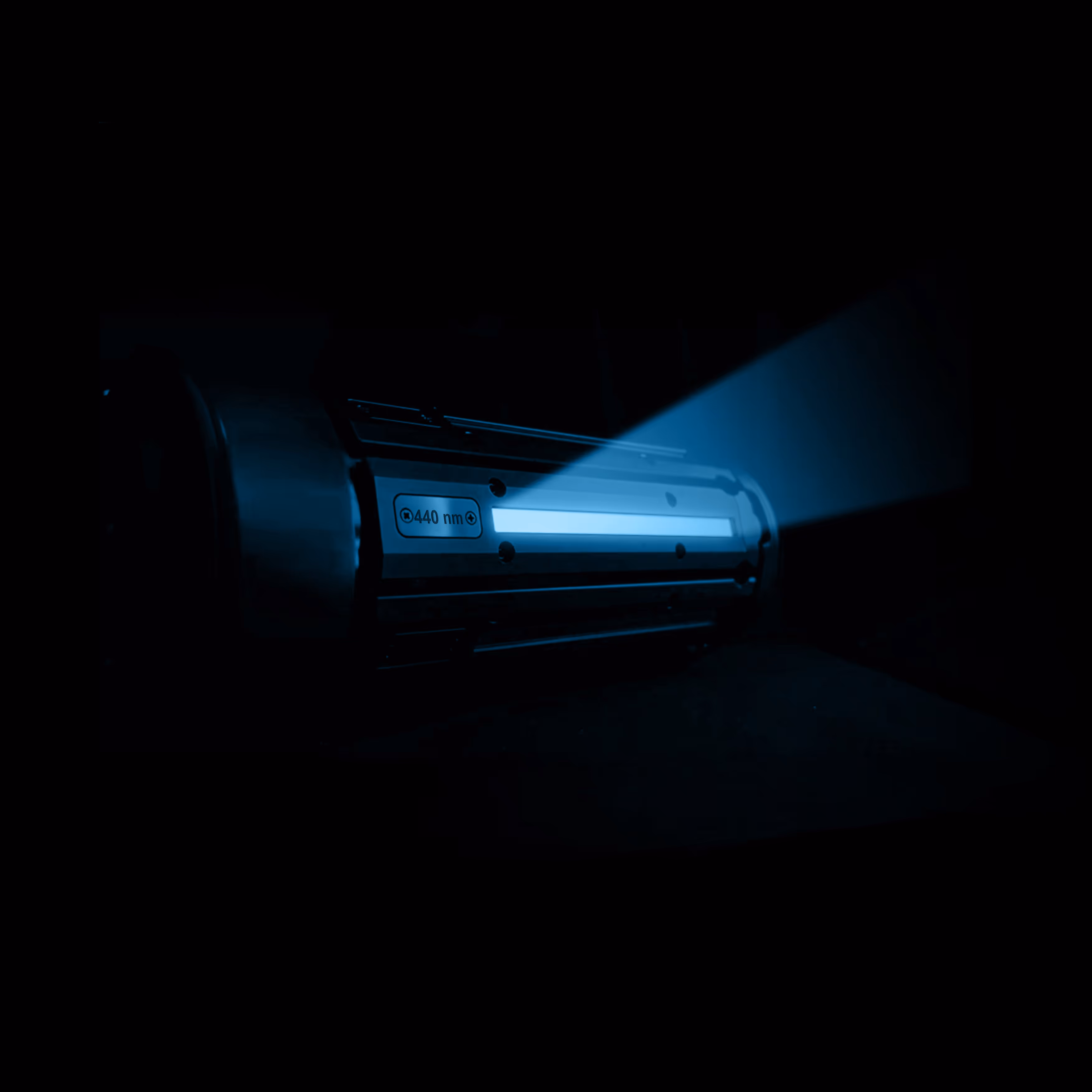

Metal device emitting a focused blue light beam labeled 440 nm on its side in a dark setting.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Learn more
Light device emitting a blue beam with a label reading 480 nm on its side.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Button
Green laser device emitting a 540 nm wavelength beam in a dark environment.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Button
Orange light beam emitting from a metallic device labeled 580 nm in a dark setting.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Button
Red laser light device emitting a focused beam marked with 640 nm wavelength.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Button
Red light beam projecting from a cylindrical device labeled 680 nm in a dark setting.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Button
Close-up of a device emitting red infrared light labeled 740 nm in a dark setting.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Button
Infrared light device emitting a red beam labeled 780 nm in a dark setting.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Button
A device emitting a focused beam of light labeled as 540 nm in a dark environment.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

Learn more

Each module is equipped with premium emission filters that exhibit a flat wavelength peak rather than the traditional curves, thereby enhancing the uniformity of the illumination source.

Check compatible dyes
Blue UV light device emitting a bright beam in a dark environment.

Multispectral Imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.

Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

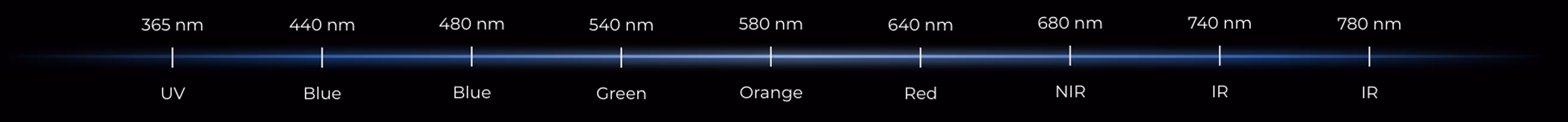

Light spectrum scale from 365 nm UV to 780 nm IR with blue, green, orange, red, NIR, and IR labels.

Each module is equipped with premium emission filters that exhibit a flat wavelength peak rather than the traditional curves, thereby enhancing the uniformity of the illumination source.

Learn more

Next-Level Analysis with AI

Experience absolute quantification at a glance, powered by AI. Our advanced analysis software automatically generates a comprehensive dashboard where all essential data for quantification is clearly displayed—no manual setup required. With our exclusive Virtual Blot technology, you gain enhanced visualization of your blot without compromising the accuracy of protein quantification. Our powerful software intelligently interprets your images, transforming raw data into reliable, actionable results while preserving scientific integrity.

Learn more

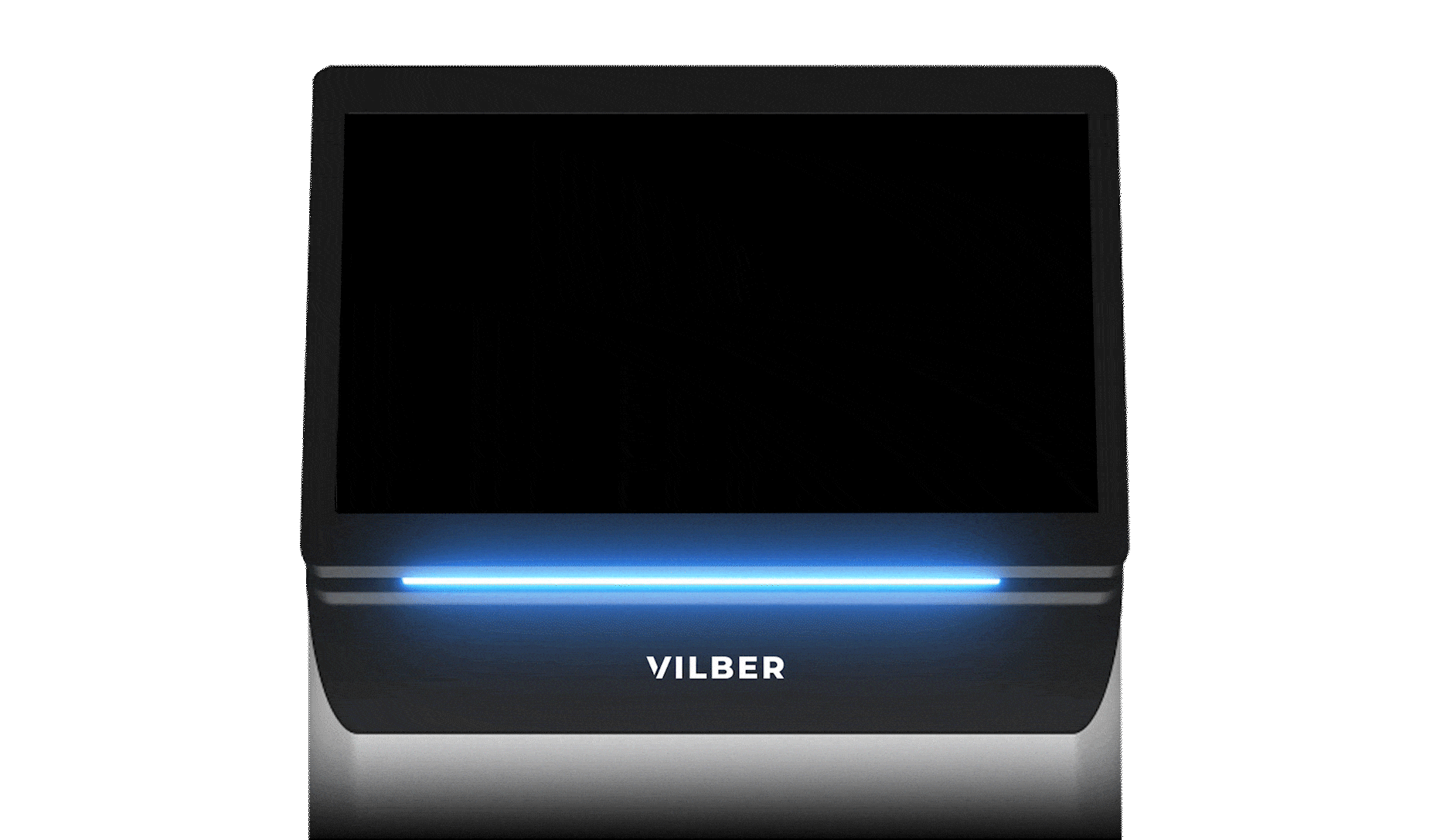

Black rectangular device with a blue horizontal light strip and the brand name 'VILBER' below it.

Absolute Design

2 configurations for a simplified imaging process

INTEGRATED PC
PC BASED

WESTERN BLOTS / GELS IMAGING

The Fusion Absolute is a powerful and robust all in one standalone system made of aluminium and stainless steel. These quality materials ensure high resistance to the most demanding decontamination procedures, making it ideal for the most secure laboratories. Its design has been optimized by our R&D team to offer you the widest touchscreen in the market while perfectly fitting in your lab. Adjust screen orientation and view vibrant images in high resolution.

Book a free demo
Circular infographic with icons and text detailing features: robustness, materials, standards, size, and touchscreen.

WESTERN BLOTS / GELS IMAGING

You are used to working on computer-based systems? The non-display version of the Fusion Absolute offers similar performance in a compact format. Depending on your needs and applications you can easily customize your system.

Book a demo
Circle infographic listing maximum robustness, high-quality materials, standards compliance, and compact size.

Wide Application Coverage

Wherever your research takes you, from genomics to proteomics or biomedical science, the Fusion Absolute offers an infinite range of applications for a variety of analyses.

Learn more

Trusted by Leading Researchers

Check our contributions to prestigious publications

Choose your ideal configuration

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
FUSION ABSOLUTE FX6
Everyday imaging
excellence

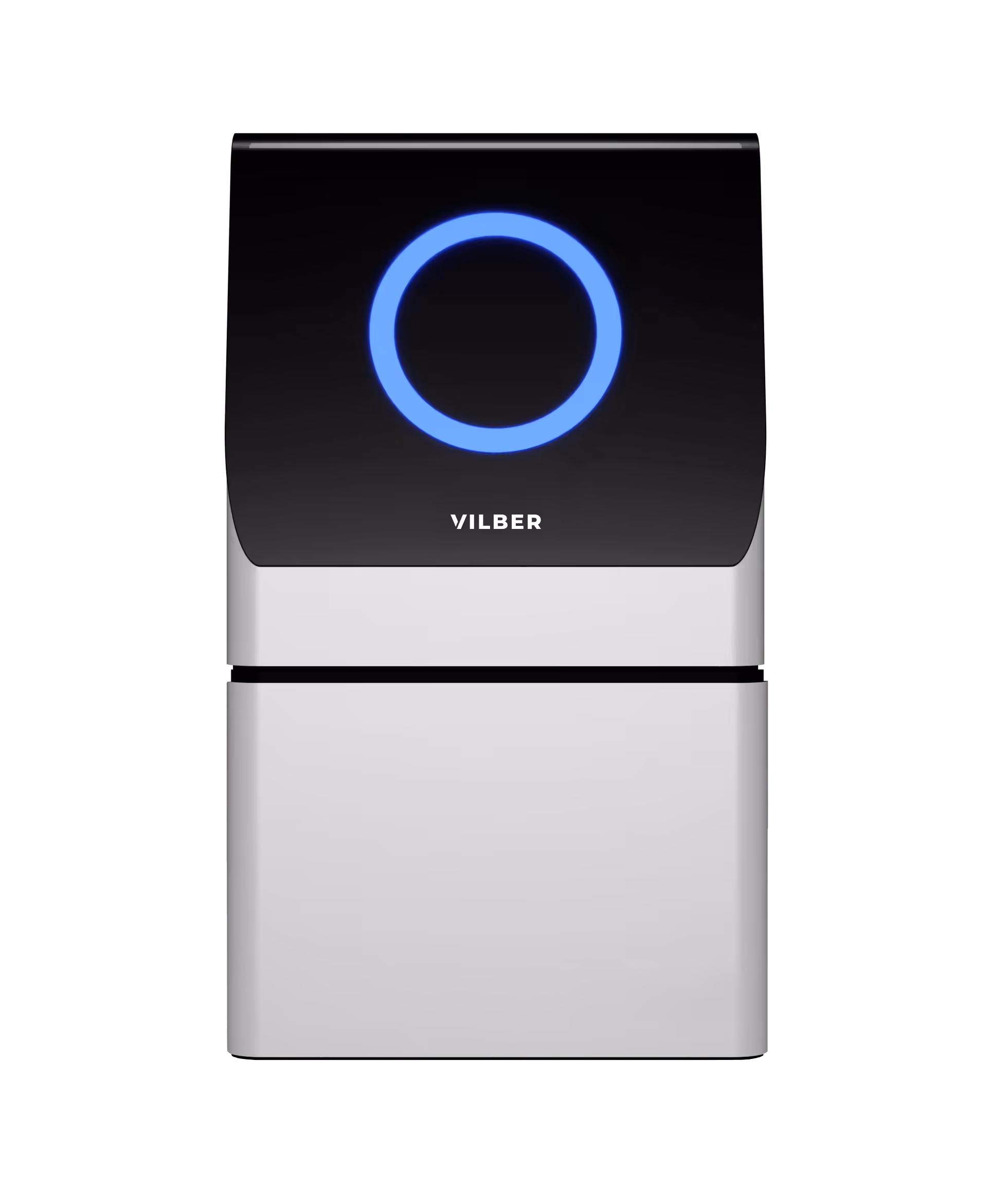

VILBER branded modern scientific or lab device with a glowing blue circular light on top black panel.
FUSION ABSOLUTE FX7
Ultimate sensitivity for
advanced research
VILBER branded modern scientific or lab device with a glowing blue circular light on top black panel.
DESCRIPTION
Your go-to system to capture high-definition and publication-ready images. Ideal for scientists who require image sharpness and detail in their daily workflows.
Your ultra-sensitive system for faster image acquisition and deeper data insights. Engineered for demanding research and scientists seeking exceptional performance.
DESIGN
PC-Based
Integrated PC
Dimensions: 678 (height) x 507(depth) x 382 (width) mm | Weight: 50 kg
15,6” touchscreen | Dimensions: 682 (height) x 528 (depth) x 382 (width) mm | Weight: 59 kg
Integrated PC
PC-Based
678 (height) x 507(depth) x 382 (width) mm | Weight: 50 kg
15,6” touchscreen | Dimensions: 682 (height) x 528 (depth) x 382 (width) mm | Weight: 59 kg
IMAGING MODALITIES
Chemiluminescence, fluorescence and epifluorescence
Chemiluminescence, fluorescence and epifluorescence
APPLICATIONS
· Western, Northern, Southern blotting and protein gels
· DNA and RNA gels
· Compatible with colorimetric-stained gels, X-ray film,
· SSCP gels, colony dishes, and flasks
· Western, Northern, Southern blotting and protein gels
· DNA and RNA gels
· Compatible with colorimetric-stained gels, X-ray film,
· SSCP gels, colony dishes, and flasks
OVERALL SENSITIVITY
CAMERA
Scientific grade 16-bit CCD camera, capturing
65,535
shades of grey
Scientific grade 16-bit CCD camera, capturing
65,535
shades of grey
DYNAMIC RANGE
4.8 OD
4.8 OD
LENS APERTURE
Fixed
f/0.7
Fixed
f/0.7
RESOLUTION
Up to
20 megapixels
20 MP
with a native resolution of 2823 x 2224 pixels
Up to
10 megapixels
10 MP
with a native resolution of 2160 x 2160 pixels
COOLING
Up to
- 30°C
absolute cooling via three stages Peltier
Up to
- 65°C
absolute cooling via four stages Peltier
FIELD OF VIEW
Up to 24 x 20 cm
Up to 20 x 20 cm
BINNING MODES
1x1, 2x2, 4x4, 8x8
1x1, 2x2, 4x4, 8x8
TRANSILLUMINATION
Interchangeable Pads
(UV-A, UV-B, UV-A+UV-B, White Light, Blue Light, Green Light)
Interchangeable Pads
(UV-A, UV-B, UV-A+UV-B, White Light, Blue Light, Green Light)
MULTISPECTRAL IMAGING
EXCITATION SOURCES FOR EPI-ILLUMINATION
Customizable with up to
9
Absolute Spectra Capsules from 365 to 780nm
Customizable with up to
9
Absolute Spectra Capsules from 365 to 780nm
EMISSION FILTERS
Customizable with up to
12
narrow-bandpass emission filters
Customizable with up to
12
narrow-bandpass emission filters
SMART HARDWARE
· Motorized lens and filter wheel for precise adjustments
· Automatic accessory recognition
· Stainless steel darkroom with wide-access door (110° angle), UV safety, and easy handling of the Pads
· Ethernet and Wi-Fi capabilities, with 3 USB 3.0, 1 USB 2.0, and 1 HDMI
· Motorized lens and filter wheel for precise adjustments
· Automatic accessory recognition
· Stainless steel darkroom with wide-access door (110° angle), UV safety, and easy handling of the Pads
· Ethernet and Wi-Fi capabilities, with 3 USB 3.0, 1 USB 2.0, and 1 HDMI
AUTOMATED IMAGE ACQUISITION
· Wizard button (automatic camera positioning according to your type of sample and its size)
· Easy to use acquisition and editing modes
· High Sensitivity Reading
· Auto focus, auto correction and auto exposure
· Data Export: 1-click to Excel, 16-bit TIFF format for image storage
· Wizard button (automatic camera positioning according to your type of sample and its size)
· Easy to use acquisition and editing modes
· High Sensitivity Reading
· Auto focus, auto correction and auto exposure
· Data Export: 1-click to Excel, 16-bit TIFF format for image storage
ANALYSIS SOFTWARE
· Virtual blot and AI assisted analysis
· Advanced software for absolute quantification
· License-free software (unlimited number of users)
· Data Export: 1-click to Excel, 16-bit TIFF format for image storage
· Virtual blot and AI assisted analysis
· Advanced software for absolute quantification
· License-free software (unlimited number of users)
· Data Export: 1-click to Excel, 16-bit TIFF format for image storage
Download
Brochure
Data Sheet
Brochure
Data Sheet
Book a free demo
