Dedicated to all your chemiluminescence and fluorescence applications

With the FUSION ABSOLUTE, benefit from an infinite range of applications for a variety of analyses :
✔ Genomics: DNA analysis (mutation, methylation etc.), RNA (gene expression...)
✔ Proteomics: Molecular weight analysis of proteins (analysis of mutation, expression etc.)
✔ Western blot: Biomedical research, molecular biology research, cancer research etc.

Optional Pads tailored to your needs

Sample Tray

UV Pad (302 nm)

White Pad

Blue Pad

Green Pad

Powerful multispectral imaging

Capture images at multiple wavelengths to extract comprehensive information from your sample. While traditional chemiluminescent Western blots are designed to target one protein at a time, our system's epifluorescence capabilities enable multispectral imaging. With this powerful feature, you can target and visualize two or more proteins within a single protocol.
Our 9 Absolute Spectra Capsules are highly precise, allowing you to be as close as possible to the spectrum of your dye and to avoid crosstalk.

UV 365 nm
Blue 440 nm
Blue 480 nm
Green 540 nm
Orange 580 nm
Red 640 nm
NIR 680 nm
NIR 740 nm
IR 780 nm

 Wavelengths of our Spectra Absolute Capsules

Powerful multispectral imaging

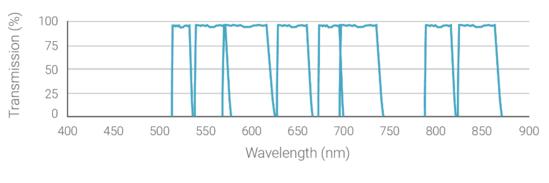

Each module is equipped with premium emission filters that exhibit a flat wavelength peak rather than the traditional curves, thereby enhancing the uniformity of the illumination source.

Wavelengths of our emission filters

Simplified imaging process for immediate results

Save time with our “wizard” button. FUSION ABSOLUTE's imaging process is so smooth that you don't even need to click anywhere else to start image capture. The system automatically recognizes your samples and suggests the correct protocol for faster acquisition.

Advanced automation

The FUSION ABSOLUTE features advanced, motorized optics. Once your sample is placed in the machine, the system evaluates precisely the required camera positioning distance. The Z-axis moves automatically according to the nature and size of the sample.

High-end optics, unrivalled performance

The FUSION ABSOLUTE is equipped with a f/0.70 aperture lens (the smaller the f-number, the better) and with a deeply cooled CCD scientific camera to ensure you get the best possible images without any background noise.

Absolute quantification thanks to NIST Traceable Calibration*

The FUSION ABSOLUTE is the first ultra-precise photon counting imaging system enabling you to achieve absolute quantification effortlessly. Ensure the accuracy and repeatability of your results and compare multiple images, regardless of the conditions under which they were taken.

* Absolute NIST Traceable Calibration Imaging is based on traceable references provided by the National Institute of Standards and Technology (NIST).

Absolute quantification at a glance

Our powerful analysis software generates a dashboard in which all the information required for quantification is already displayed. The visualization of your results combines the calculations made by the system and the image taken so that you can easily communicate your results.

Unmixing technology

Our unique combination of multispectral imaging and spectral unmixing technologies makes your life easier and solves your crosstalk and autofluorescence issues. Get more accurate detection and measurement in your multi-labeled samples thanks to our powerful N.M.F. (non-negative matrix factorization) algorithm.
