newton 7.0 bio
grow your images

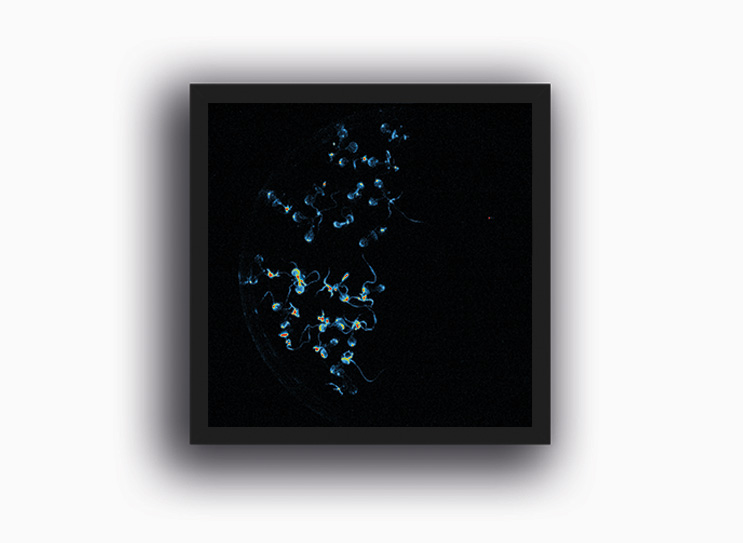

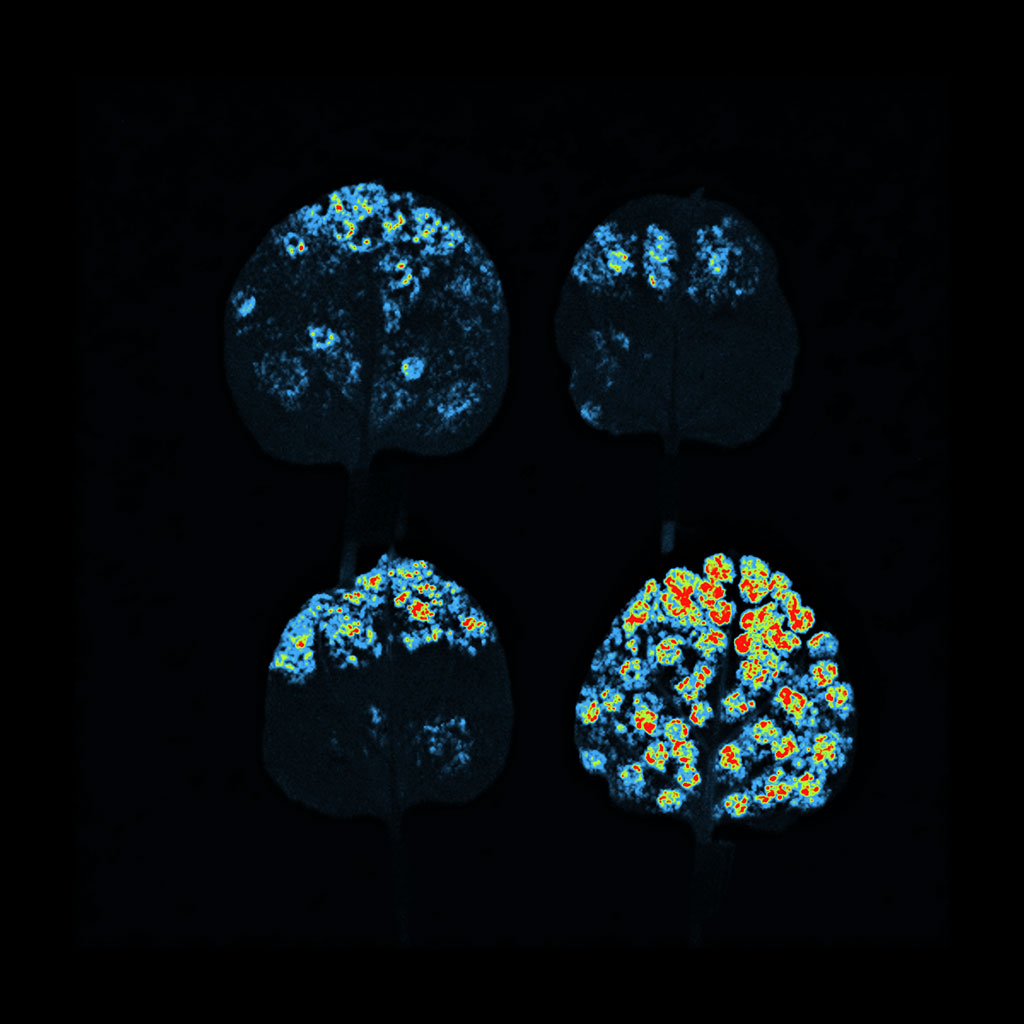

The Newton 7.0 BIO is a smart world-wide used system dedicated to bioluminescence (picogram level) and fluorescence (femtogram level) for plant imaging. Thanks to its unrivalled precision optics and its wide detection spectral range, the system allows you to visualize infections in whole plants and leaves but also to compare plant virology, regulate plants growth or observe the stress tolerance for example.
absolute quantification.
“AN INSTINCT FOR TRUTH” – Louis pasteur
- DETECTION CAPABILITIES
Luciferase expression – Green fluorescent protein (GFP), red-shifted GFP (EGFP) expression – Chlorophyll phosphorescence – NIR Illuminatio
- CHOICE OF SAMPLES
Small plants – Fruits – Vegetables – Leaves – Cyanobacteria – Green algae – Seedlings – Insects – Blossoms – Roots – Mosses – Lichens – Fungi – Cell and tissue cultures
- Incredible ease of use
Free license software – Intuitive user interface – One click to get the image – Auto-exposure and automatic illumination control – Adjustable stage
- DESIGNED WITH YOU IN MIND
Very robust design for a long term use – Made of aluminium and stainless steel (no plastic) – Elegant, modern and compact design to fit your work environment
Detect and decode.
We know what these images mean to you
UNRIVALLED SENSITIVITY AND SHARPNESS
The NEWTON 7.0 BIO proprietary optics have been specifically developed for macro imaging with high light collection capacity, incorporating a unique combination of high numerical aperture and long working distance.
Our system is equipped with a high-resolution scientific CCD camera which means better performance in pattern recognition. Bright fluorescence observation can be performed in a rapid scanning mode that shortens exposure times and minimizes specimen damage.
MULTISPECTRAL AND FLUORESCENCE IMAGING
Our dual magnetron filter technology ensures transmission above 90% and very narrow band cutting. The time to get the image is drastically reduced and sensitivity is increased. Our system accommodates 8 excitation channels in the visible RGB and NIR spectrum (from 400 to 900nm).
Signals can be overlaid so that several reporters can be visualized simultaneously. The very tight LED spectrum is additionally constrained with a very narrow excitation filter. This means less background in the images (ultra-low noise imaging) of your sample and a higher signal to noise ratio to detect the weakest signals.
BEST CAMERA PERFORMANCE
The NEWTON 7.0 BIO is equipped with a high-sensitivity scientific CCD camera with a proprietary lens offering the widest aperture in the industry (f/0.70) as well as a deep camera cooling down to -90°C to ensure the best signal to noise ratio (which is ideal for faint luminescence applications).
With up to 4.6 image resolution, obtain the sharpest details from your samples.
HEIGHT ADJUSTABLE PLANT STAGE
Enjoy a 20×20 FOV to visualize large plants! The rotating stage is motorized on the Z axis to get closer to the CCD camera. It can be inclined by 15° on the X/Y axis and easily controlled from the software, avoiding time consuming manipulation.
Detect and decode.
We know what these images mean to you
UNRIVALLED SENSITIVITY AND SHARPNESS
The NEWTON 7.0 BIO proprietary optics have been specifically developed for macro imaging with high light collection capacity, incorporating a unique combination of high numerical aperture and long working distance. Our system is equipped with a high-resolution scientific CCD camera which means better performance in pattern recognition. Bright fluorescence observation can be performed in a rapid scanning mode that shortens exposure times and minimizes specimen damage.
MULTISPECTRAL AND FLUORESCENCE IMAGING
Our dual magnetron filter technology ensures transmission above 90% and very narrow band cutting. The time to get the image is drastically reduced and sensitivity is increased. Our system accommodates 8 excitation channels in the visible RGB and NIR spectrum (from 400 to 900nm). Signals can be overlaid so that several reporters can be visualized simultaneously. The very tight LED spectrum is additionally constrained with a very narrow excitation filter. This means less background in the images (ultra-low noise imaging) of your sample and a higher signal to noise ratio to detect the weakest signals.
- UNRIVALLED SENSITIVITY AND SHARPNESS
The NEWTON 7.0 BIO proprietary optics have been specifically developed for macro imaging with high light collection capacity, incorporating a unique combination of high numerical aperture and long working distance. Our system is equipped with a high-resolution scientific CCD camera which means better performance in pattern recognition. Bright fluorescence observation can be performed in a rapid scanning mode that shortens exposure times and minimizes specimen damage.
- MULTISPECTRAL AND FLUORESCENCE IMAGING
Our dual magnetron filter technology ensures transmission above 90% and very narrow band cutting. The time to get the image is drastically reduced and sensitivity is increased. Our system accommodates 8 excitation channels in the visible RGB and NIR spectrum (from 400 to 900nm). Signals can be overlaid so that several reporters can be visualized simultaneously. The very tight LED spectrum is additionally constrained with a very narrow excitation filter. This means less background in the images (ultra-low noise imaging) of your sample and a higher signal to noise ratio to detect the weakest signals.
- BEST CAMERA PERFORMANCE
The NEWTON 7.0 BIO is equipped with a high-sensitivity scientific CCD camera with a proprietary lens offering the widest aperture in the industry (f/0.70) as well as a deep camera cooling down to -90°C to ensure the best signal to noise ratio (which is ideal for faint luminescence applications). With up to 4.6 image resolution, obtain the sharpest details from your samples.
- HEIGHT ADJUSTABLE PLANT STAGE
Enjoy a 20×20 FOV to visualize large plants! The rotating stage is motorized on the Z axis to get closer to the CCD camera. It can be inclined by 15° on the X/Y axis and easily controlled from the software, avoiding time consuming manipulation.
UNRIVALLED SENSITIVITY AND SHARPNESS
The NEWTON 7.0 BIO proprietary optics have been specifically developed for macro imaging with high light collection capacity, incorporating a unique combination of high numerical aperture and long working distance. Our system is equipped with a high-resolution scientific CCD camera which means better performance in pattern recognition. Bright fluorescence observation can be performed in a rapid scanning mode that shortens exposure times and minimizes specimen damage.
UNRIVALLED SENSITIVITY AND SHARPNESS
The NEWTON 7.0 BIO proprietary optics have been specifically developed for macro imaging with high light collection capacity, incorporating a unique combination of high numerical aperture and long working distance. Our system is equipped with a high-resolution scientific CCD camera which means better performance in pattern recognition. Bright fluorescence observation can be performed in a rapid scanning mode that shortens exposure times and minimizes specimen damage.
UNRIVALLED SENSITIVITY AND SHARPNESS
The NEWTON 7.0 BIO proprietary optics have been specifically developed for macro imaging with high light collection capacity, incorporating a unique combination of high numerical aperture and long working distance. Our system is equipped with a high-resolution scientific CCD camera which means better performance in pattern recognition. Bright fluorescence observation can be performed in a rapid scanning mode that shortens exposure times and minimizes specimen damage.
UNRIVALLED SENSITIVITY AND SHARPNESS
The NEWTON 7.0 BIO proprietary optics have been specifically developed for macro imaging with high light collection capacity, incorporating a unique combination of high numerical aperture and long working distance. Our system is equipped with a high-resolution scientific CCD camera which means better performance in pattern recognition. Bright fluorescence observation can be performed in a rapid scanning mode that shortens exposure times and minimizes specimen damage.
get vibrant images
all the applications you need
WHAT SMART MEANS
from acquisition to analysis
specifications
unrivalled technical expertise
Performance
- Bioluminescence detection: picogram level Fluorescence detection.
illumination
- Dual white-light LED panels
- 8 excitation channels: 440nm – 480nm – 540nm – 580nm – 640nm – 680nm – 740nm – 780nm
- 11-position motorized filter wheel
- 8 narrow bandpass emission filters: 500nm – 550nm – 600nm – 650nm – 700nm – 750nm – 800nm – 850nm
software
- Automatic, manual & serial acquisition modes 3D live dynamic scan.
- Image editing and image analysis including bioluminescence and fluorescence on whole plants to seedlings.
camera & optics
- Scientific grade 16-bit CCD camera
- Grade 0, 400-900nm / 4.8 O.D.
- -90°C Cooling
- f/0.70 motorized lens aperture
- Resolution: 2160×2160 pixels
- Peak quantum efficiency: 80%
- FOV mininum: 6x6cm (macro imaging)
- FOV maximum: 20x20cm
hardware capabilities
- Intelligent darkroom concept, Fully-automatic system
- Motorized optical lens
- Z-axis motorized camera
- ± 15° tilting sample stage
compatible dyes & stains
- CFP, GFP, YFP, RFP, FITC, DAPI, Alexa Fluor® 680, 700, 750, Cy® 2, 3, 5, 5.5, DyeLight, IRDye® 680, 800CW
