Newton 7.0
Vivo
In Vivo Imaging
Superior Quantitative Results
Ultimate linearity for precise protein quantification over the full dynamic range.
Multispectral Imaging
Ultra-low noise imaging thanks to a dual camera amplifier architecture.
Custom Made V.070 Lens
Newton custom made lens for enhanced sensitivity and sharpness.
Narrow Bandpass Filters
Time to get the image is drastically reduced and precious antibody can be saved.
Supported By Prestigious Publications
The unrivaled NEWTON 7.0 is ideal for bioluminescence and fluorescence imaging of in vivo, ex vivo and in vitro applications.
Imaging Versatility
- Monitoring the development of tumors and infections
- Tracking cell migration
- Targeting the Biodistribution of drugs, molecules and nanoparticles
- Visualization of vasculature and microcirculation
Performance
- Ultimate sensitivity with the widest lens aperture f/0.70
- 1” Scientific Grade CCD Camera and -90°C absolute cooling
- Bioluminescence detection : femtogram level
- Fluorescence detection : picogram level
- 3D Optical Tomography
Ease Of Use
- Intuitive & user-friendly software interface
- One click to get the image
- Auto-exposure and automatic illumination controls
- Easy to clean

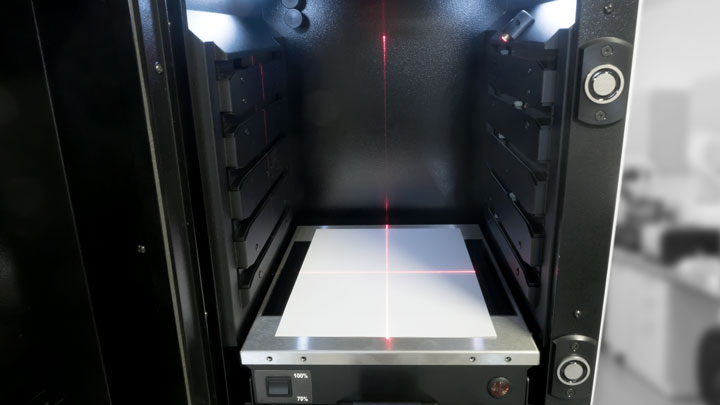

Animals Management
- Up to 5 mice capacity
- Heated animal bed (+37°C)
- EQUAFLOW™ breathers to deliver equal gas to each nose cone and prevent unwanted animals awakening
- Automatic Active Gas Scavengers
- Compatible with the BIOSTHESIA gas anesthesia station
Intuitive Software
Designed by molecular biologists, the NEWTON 7.0 Software has rich features and guides you into the advanced functions in a very ergonomically designed user interface. The simple and self-understandable menu is ideal in a multi-user environment : just one click is necessary to get the optimum image.
Dive into the comprehensive image analysis modules to easily quantify signal measurements, and get the maximum quantification data out of your samples in a few steps.
Your Applications At Your Fingertips
- Thanks to the unique Fluorescence illumination architecture, the NEWTON 7.0 accommodates 8 excitation channels in the Visible (RGB) and Near-Infrared (NIR) spectrums. Signals can be overlaid so that several reporters can be visualized simultaneously in the same animal.
- A large number of molecular reagents and fluorophores can be used such as GFP, YFP, FITC, DAPI, mCHERRY, Alexa Fluor® 680, 700, 750, Cy® 3, 5, 5.5, DyeLight, IRDye® 800CW, VivoTrack 680, VivoTag 750 etc…
Technology With Simplicity
Advanced technologies inside, outstanding ease of use outside.
Our latest innovations make the Newton 7.0 the ideal system for publication, quantification and documentation grade imaging.
Our latest innovations make the Newton 7.0 the ideal system for publication, quantification and documentation grade imaging.
V.070 Lens
High Sensitivity Reading™
3D Dynamic Scan™
Variety Of Newton
Vilber is a world leader in the molecular imaging sector, and has equipped more than 20,000 laboratories worldwide. An estimated 60.000 people use our products every day in over 100 countries worldwide.
Variety Of Newton
Vilber is a world leader in the molecular imaging sector, and has equipped more than 20,000 laboratories worldwide. An estimated 60.000 people use our products every day in over 100 countries worldwide.
| BT100 | FT100 | BT500 | FT500 | |
| Camera | DarQ-11 1” Scientific CCD Sensor 2160×2160 (4.6 MP) | DarQ-11 1” Scientific CCD Sensor 2160×2160 (4.6 MP) | DarQ-11 1” Scientific CCD Sensor 2160×2160 (4.6 MP) | DarQ-11 1” Scientific CCD Sensor 2160×2160 (4.6 MP) |
| Absolute Cooling | -90°C | -90°C | -90°C | -90°C |
| Lens | f/.070 | f/.070 | f/.070 | f/.070 |
| Bioluminescence | Yes | Yes | Yes | Yes |
| VIS/NIR Fluorescence | upgradeable | 400 > 900nm | upgradeable | 400 > 900nm |
| 3D Optical tomography | Yes | Yes | Yes | Yes |
| Emission Filter-Wheel | 11 positions | 11 positions | 11 positions | 11 positions |
| Field Of View | 12 x 12cm | 12 x 12cm | 6 x 6cm to 20 x 20cm | 6 x 6cm to 20 x 20cm |
| Animal Capacity | 1 or 3 mice | 1 or 3 mice | 5 mice / 3 rats | 5 mice / 3 rats |
| Heated Stage | Yes | Yes | Yes | Yes |
| Anesthesia Station | Optional | Optional | Optional | Optional |
